Telpro Door Handler Single Person Installation Intex DOORMINATOR DH3070

…...

• The Doorminator™ allows a single person to easily and safely handle, install and remove solid core doors.
• The Doorminator™ loads easily and the tricycle configuration design allows the operator to easily roll the door from one location to the other. The larger wheels on the Doorminator™ provide a smooth transition from point to point, even on the job site.
• The Doorminator™ is also fully adjustable; tilts forwards and backwards, side to side, and rises up and down, in order to align the door with the jamb.

SPECIFICATIONS:

• Max Load: 72 kg (160 lbs)
• Max Door Height: 213.4cm (84")
• Max Door Width: 121.9cm (48")

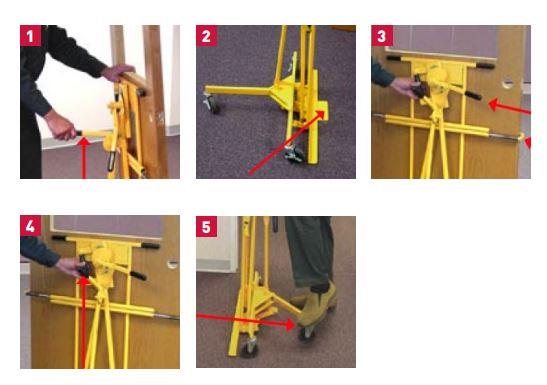

SPECIAL FEATURES:


1. The Tilt Handle will adjust the door
forward (4° ) and backwards (12°) on
either side of plumb.

2. The Floor Plate moves out to
support the door when in plumb or
past plumb position.

3. The Lift Handle will lift the door from
.6cm (1/4") to 5cm (2") off the floor.

3. The Door Hooks are spring loaded
and can accommodate doors
from 71cm (28") to 122cm (48") wide.

4. The Side Tilt Adjustment
Wheel adjusts the door from
Right (20) to Left (20) on either
side of plumb.

5. The Back Leg folds for
transportation and storage.
